96 Silver Z: Dyno



Click on the Dyno Sheet images to see full size graphs.

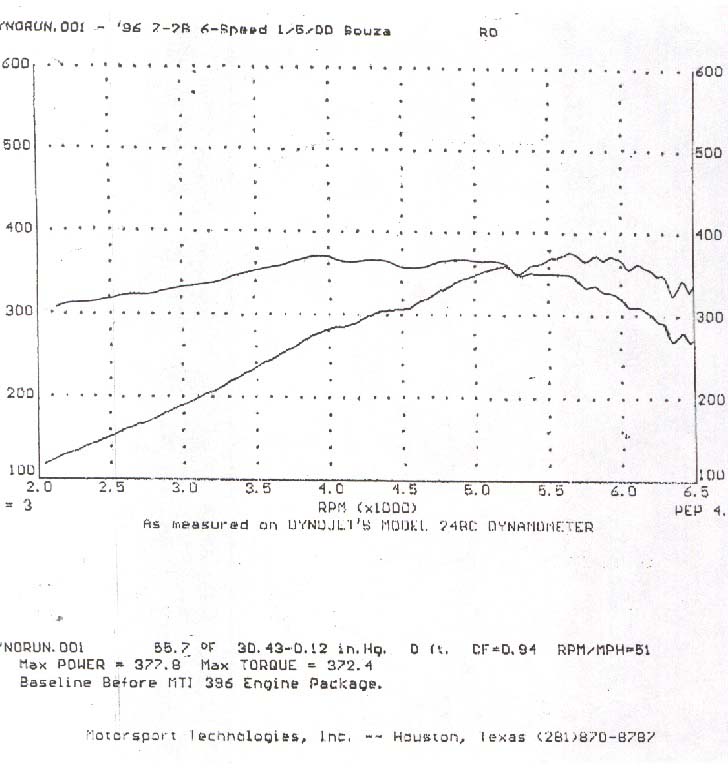

378 rwhp/ 372 rwtq Dyno Sheet

Vortech S-trim 6 psi supercharger, Borla cat-back exhaust, '95 reprogrammed computer

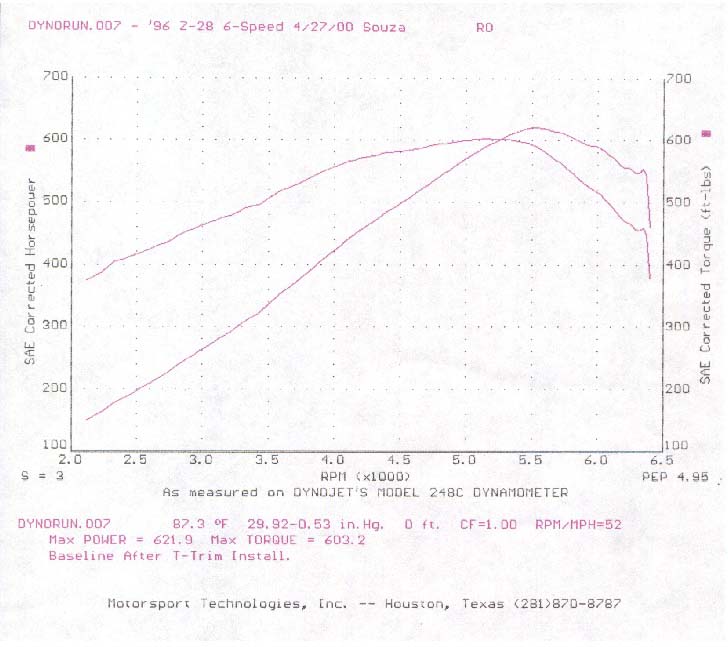

622 rwhp/ 603 rwtq Dyno Sheet

MTI 396 stroker, 13 psi Vortech T-trim supercharger, Ported LT-4 heads and intake, 58mm AS+M throttle body, Hooker 1 3/4 long tubes, CC305 cam, Crane 1.6 roller rockers, Borla cat-back exhaust, NOS inline fuel pump, 95 reprogrammed computer, Lucas 42 lbs. injectors, FMU

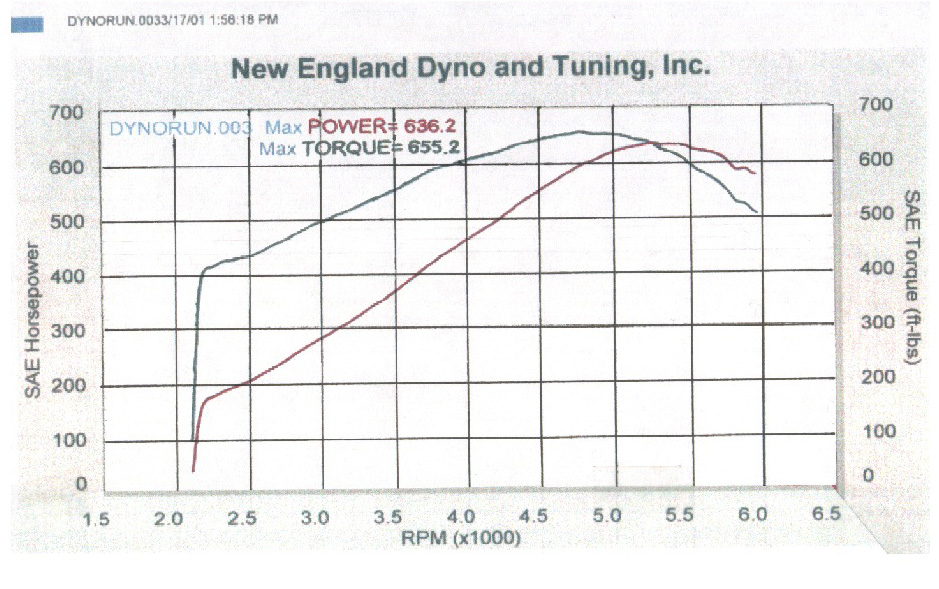

636 rwhp/ 655 rwtq Dyno Sheet

Same as above but added a Vortech Air to Water Aftercooler.
The car now runs lean from cooler, denser air from the Aftercooler. The fuel system is now being upgraded.



840 flywheel hp/Pump Gas

402 cubic inches
cog pullies
Vortech T-Trim
14.5 PSI



840 flywheel hp/Pump Gas

402 cubic inches
cog pullies
Vortech T-Trim
14.5 PSI

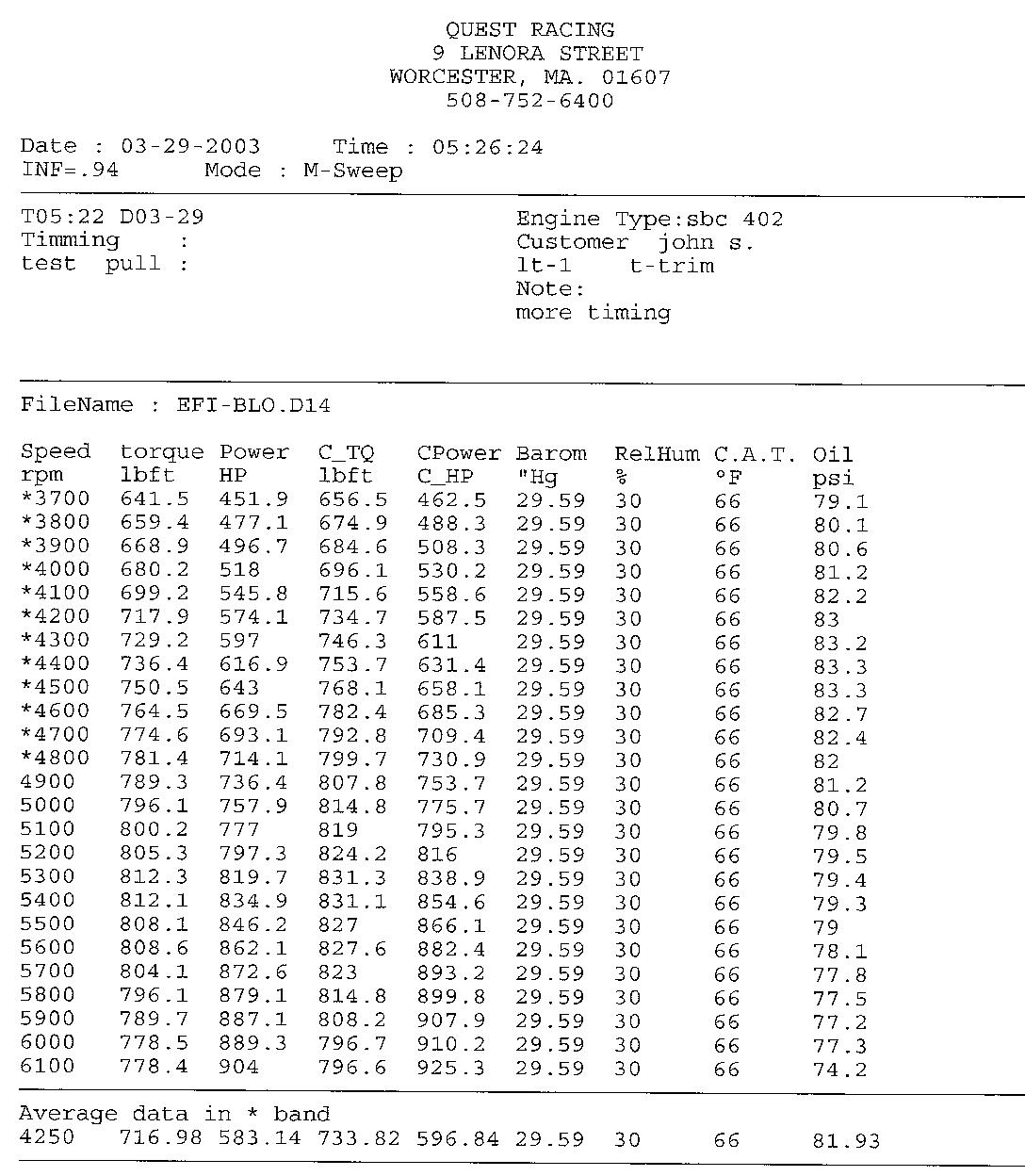

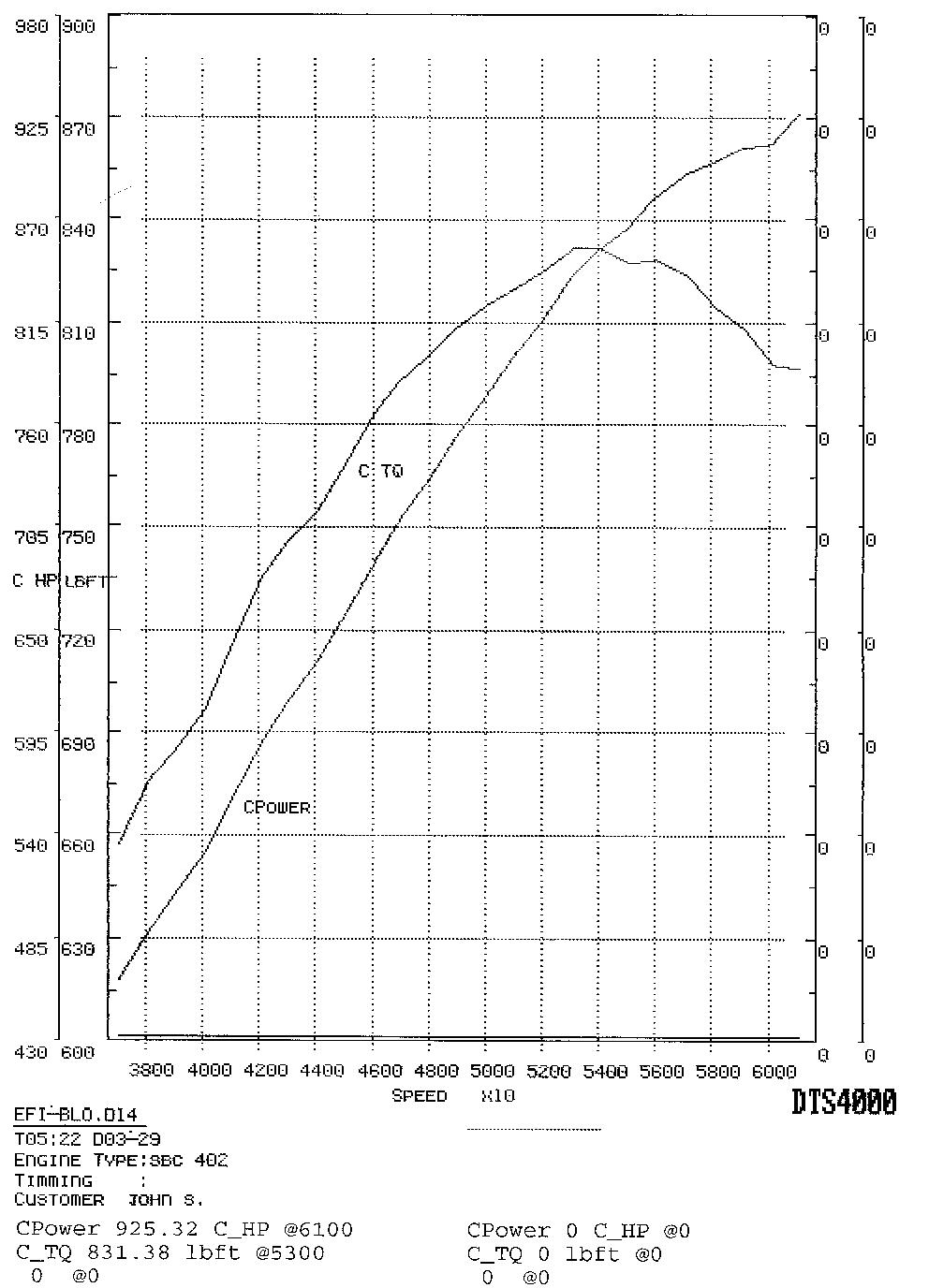

925 flywheel hp/ 100 Octane Race Gas

402 cubic inches
cog pullies
Vortech T-Trim
14.5 PSI



925 flywheel hp/ 100 Octane Race Gas

402 cubic inches
cog pullies
Vortech T-Trim
14.5 PSI



96SilverZ designed and built by A. O'Keefe. Copyright © 2001.
